FB post privacy is about choosing who gets to see your content—friends, everyone, or only yourself—on a post-by-post basis, with options to fine-tune visibility.
FR1: Standard Privacy Options
Authors can choose from basic visibility modes like Only Me, Friends, or Public.
FR2: Extended & Custom Audience Controls
More advanced rules must be supported, such as Friends of Friends (FOF) or Friends except…, including inclusion and exclusion lists.
FR3: Global Enforcement
Rules must hold consistently everywhere: feeds, profiles, search, notifications, sharing, and even media served from CDNs.
| Requirements Summary | |
|---|---|
| Name | Description |
| FR1 | Standard Privacy Options | Authors can choose from basic visibility modes like Only Me, Friends, or Public. |
| FR2 | Extended & Custom Audience Controls | More advanced rules such as Friends of Friends (FOF), Friends except…, with inclusion and exclusion lists. |
| FR3 | Global Enforcement | Rules must hold consistently everywhere: feeds, profiles, search, notifications, sharing, and CDN media. |
| NFR1 | Low Latency | Single-digit milliseconds at P99 for privacy checks. |
| NFR2 | High Availability | 99.99% uptime with fail-closed behavior (deny if uncertain). |
Think of post visibility like a filter: we start with everyone, then add rules to decide who's in and who's out.
Step 1: Base Audience
When you create a post, you pick a base rule:
Step 2: Includes & Excludes
Then, the author can fine-tune:
Step 3: Final Check
To decide if a viewer V can see a post by author A:
V is still in → they can see it. Otherwise → hidden.Why this matters?
By thinking in terms of "start big, then filter", complex cases like custom lists or friends of friends become much easier. Under the hood, the system just needs fast ways to check:
That's how Meta can answer billions of these checks every day at scale.
1) Create/Update Audience Rules: Normalize privacy once; reuse across posts.
Create: POST /v1/audiencespecs
{ "base": "FRIENDS", "includes": {"list_ids":["L1"],"user_ids":["u42"]}, "excludes": {"list_ids":[], "user_ids":["u77"]} }
→ 201 { "audience_id": "A1", "version": 1 }
Update (versioned): PATCH /v1/audiencespecs/{audience_id}
→ 200 { "audience_id":"A1","version":2 }
Key validations needed: caller owns lists; no user/list in both include & exclude.
2) Create Post (attach audience): Source of truth tying content to privacy.
Create: POST /v1/posts
{ "author_id":"u1", "content":{"text":"hello"}, "audience_id":"A1" }
→ 201 { "post_id":"P1","audience_id":"A1","created_at":"..." }
(Optional) Change audience: PATCH /v1/posts/{post_id} with { "audience_id":"A2" }
Key validations needed: author = caller; audience exists; audit the change.
3) Batch Visibility Check: Fast feed/search filtering is impossible without this.
Check: POST /v1/visibility:batch
{ "viewer_id":"u42", "post_ids":["P1","P2","P3"] }
→
{ "results": [
{"post_id":"P1","visible":true,"reason":"IN_BASE_FRIENDS"},
{"post_id":"P2","visible":false,"reason":"EXCLUDED_BY_LIST"},
{"post_id":"P3","visible":true,"reason":"IN_INCLUDES"}
]}
Notes: Server expands graph/lists once per viewer; returns reason codes for debugging.
At the heart of a privacy-aware social system are a handful of core entities. Each table plays a very specific role in anchoring identity, maintaining the social graph, encoding privacy rules, and binding them to actual content. The key principle here is separation of concerns: keep identity, relationships, privacy rules, and posts distinct, but link them together so that visibility can be evaluated consistently and retroactively.
Users
| Users | |
|---|---|
| Name | Description |
| user_id (PK) | Stable identity; never reused. Drives ownership and audit trails. |
| name | Display only; not used for joins. |
created_at | For audit/forensics and abuse heuristics. |
Friendships
Design intent: Compact, deterministic undirected graph for FRIENDS/FOF checks.
| Friendships | |
|---|---|
| Name | Description |
| u (PK part) | Smaller user id; enforce u < v to store each undirected edge once. |
| v (PK part) | Larger user id. |
created_at | Useful for abuse detection and FOF TTL heuristics. |
Audience_specs
Design intent: Store rules, not expanded members so changes propagate system‑wide without rewrites.
| Audience_specs | |
|---|---|
| Name | Description |
| audience_id (PK) | Stable id for reuse across posts. |
| owner_id (FK → users.user_id) | Only owner may reference/modify. Validated at write. |
| version | Monotonic; enables retroactive policy edits vs historical snapshots. |
| base | ENUM: ONLY_ME, FRIENDS, FOF, PUBLIC. |
| includes | Logical references (list ids, user ids). Keep compact; no expansion at write. |
Posts
Design intent: Bind content to a policy reference (not a member list) so the privacy check can re‑evaluate on every read.
| Posts | |
|---|---|
| Name | Description |
| post_id (PK) | Content identity. |
| author_id (FK → users.user_id) | Used for blocks and same‑owner shortcuts. |
| audience_id (FK → audience_specs.audience_id) | Rule reference. |
audience_version | NULL = FOLLOW latest; set = PINNED snapshot. |
content_json | Metadata pointer; bytes live in object storage guarded by signed URLs. |
Start with "Friends" and "Only Me" posts to establish the core privacy loop. By avoiding FOF and custom lists at first, you skip graph blow-ups and list expansion, and focus on fundamentals you'll reuse for all modes: record rule → attach to post → batch check → deny-first → allow/deny → audit → (later) propagate changes.

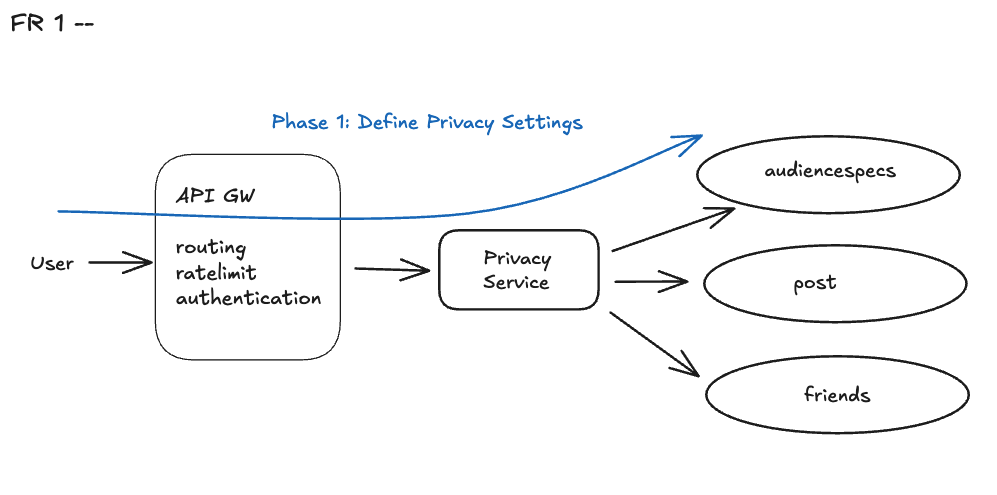

1.1 Define Privacy via audience_spec_id
At this point, user chooses a privacy rule in the UI before submitting a post, with following privacy options include:
The frontend converts this into a structured AudienceSpec, for example:
{
"base": "FRIENDS",
"includes": { "user_ids": ["u777"], "list_ids": ["L123"] },
"excludes": { "user_ids": ["u999"] }
}
Storing rule-based privacy configs (like audience_spec_id) instead of expanding to exact user IDs at write time is one of the most important architectural decisions in systems like Meta. Here's the why, explained step-by-step.
1. Rules Stay Small & Reusable — Users Lists Can Explode
A privacy rule like below: is typically a few kilobytes — even for large authors.
{ base: "FRIENDS", includes: [...], excludes: [...] }
If you expanded this rule into actual user IDs (including friends, friends-of-friends, list members), you might store thousands or millions of user IDs per post.
Storing the rule (not the result) keeps writes cheap and avoids duplicating logic per post.
2. Support Retroactive Privacy Changes
When you , you can re-evaluate it .

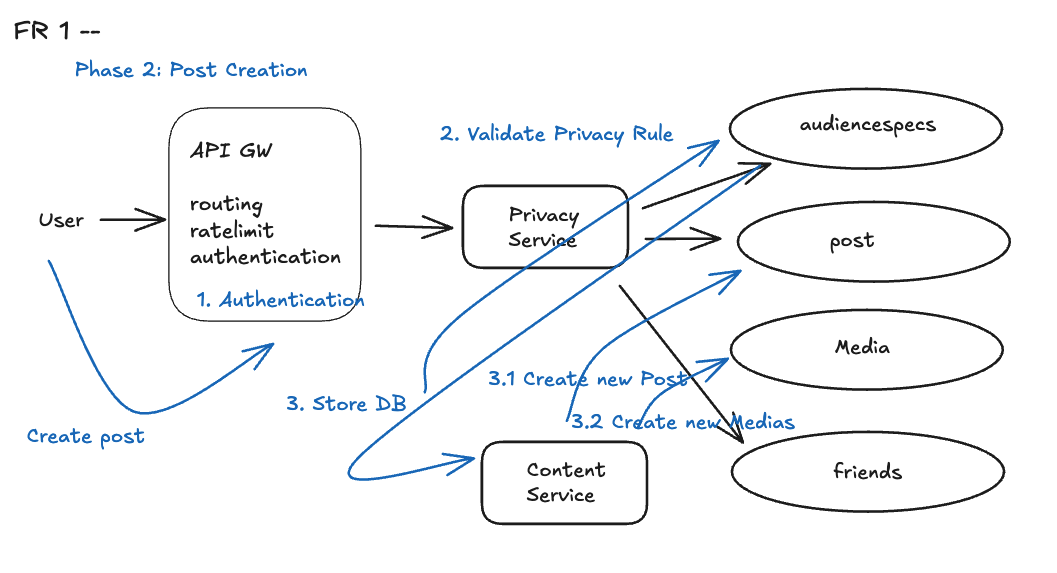

1.2 Step-by-step data flow — Create Post (write path)
Let's walk through what actually happens when a user presses "Post" in a system like Meta. The key idea is that we don't just dump content into a database. We carefully preserve intent, validate privacy rules, ensure idempotency, and guarantee that media never leaks without proper authorization.
Step 1 — Client → API: Capture Intent
The client sends a POST /posts { content, audience_spec_id } request to the API Gateway. At this stage, the system only captures intent. Nothing is visible yet.
The API Gateway does some critical checks before we even think about writing anything:
Step 2 — Resolve & Validate Privacy Rule
At this stage, the API calls into the Privacy Service to validate the requested audience_spec_id. This step is critical because without it, a user could attempt to reference someone else's list or craft an invalid rule that bypasses privacy enforcement. Yes, it adds an extra hop to the write path, but the payoff is that we centralize policy enforcement in one canonical place. Failing fast here is far better than persisting a post that later turns out to violate rules. The service checks two main things:
Once those checks pass, the Privacy Service responds with a normalized, authoritative spec object, for example:
{
"owner_id": "u123",
"current_version": 3,
"base": "FRIENDS",
"limits_ok": true,
"ownership_ok": true
}
Step 3 — Store Post into DB
Once the privacy spec has been validated by the Privacy Service, control shifts to the Content Service, which is responsible for persisting the post itself.
At this stage, the system needs to record not only the post content but also a durable link back to the privacy rule that governs it. This is done by writing the post with (author_id, audience_spec_id) .
When a post is persisted, the system needs to decide how tightly it should bind to its privacy rule. We support two versioning modes:
audience_ver = NULL. This means the post always resolves to the latest version of the audience spec at read time. If the author later edits the privacy rule (e.g., adds someone to "friends except"), those changes automatically apply to all FOLLOW-mode posts.audience_ver = resolved_version. In this case, the post is effectively "frozen" to the exact snapshot of the rule at the moment of creation. Even if the author edits the rule later, this post continues to respect the older version.Next, media attachments are handled. Images or videos that were uploaded earlier follow a two-phase protocol:
upload_id.By the time the post is created, the Content Service simply binds those uploads to the new post_id. Crucially, all media objects remain non-public during this process: there are no open ACLs. They can only be fetched via signed, short-lived URLs that the Privacy Gateway issues after verifying the viewer's access rights. This ensures that media is never accidentally exposed outside the privacy boundary of the post itself. Details will be discussed in FR3.
1.3: Reading a Post in a Thread — Privacy-Aware Data Flow
Once a post is created and persisted with its (author_id, audience_spec_id, audience_ver) binding, the next challenge is enforcing privacy when someone tries to read it. The read path is where policies actually get exercised: if you fail here, sensitive content leaks.
Step-by-step data flow — Read Post
When a viewer requests to see a post inside a thread — whether they arrived from the feed, a profile, a permalink, or a notification — the system must do more than just pull bytes from storage. It has to carefully enforce privacy at every step of the way. Let's walk through the entire read path.
Step 1 — API Gateway: Capture the request
The journey begins when the client sends a request:
GET /posts/{post_id}?viewer_id=V
The API Gateway sits at the edge, acting as both gatekeeper and traffic cop. It authenticates the caller via JWT, applies rate limits to guard against abuse, and annotates the request with the viewer_id. At this stage we are simply saying, "Viewer V is asking to read Post P." No content is returned yet — all we've done is establish identity and enforce basic guardrails.
Step 2 — Content Service: Retrieve metadata
Next, the API hands the request to the Content Service, which retrieves lightweight metadata for the post. This includes the author_id, the audience_spec_id.
This metadata acts like a pointer — it doesn't yet answer "can Viewer V see this post?" but it tells us where the rules live that will decide the answer.
Step 3 — API → Privacy Service: visibility check
Now comes the heart of the read path: the Privacy Service. The API forwards the tuple (viewer_id, author_id, audience_spec_id, audience_ver), and the Privacy Service orchestrates a series of checks behind the scenes:
audience_spec.Because this logic runs for billions of reads per day, caching is critical. Friend sets are cached per user; audience expansions are cached per (spec, version). For extremely popular authors — think celebrities with millions of followers — the system may need special handling like pre-materialized expansions or approximate sets (e.g., Bloom filters) to keep latency predictable.
Step 4 — Privacy Service: Return the decision
The Privacy Service responds with the verdict. If the viewer is allowed, the API instructs the Content Service to fetch and return the full post body. If the viewer is denied, the system responds with a 403 or a sanitized placeholder such as "This post is not available." At this stage, access is decided for the metadata, but there's still one final piece to guard: the media.
Step 5 — Media Privacy Enforcement
Media objects (images, videos) must never be exposed directly. Even if a viewer has passed the metadata check, the system enforces one more layer:
{viewer_id, post_id, exp, audience_epoch}.audience_epoch immediately invalidates all previously issued tokens at the CDN edge.This design avoids slow per-object ACL updates and ensures that media distribution honors the same privacy rules as metadata.
| NFR3 | Scalability | Policy decision, graph lookups, and caches scale horizontally at billion-user level. |
| NFR4 | Correctness | Eventual consistency acceptable, but revocations must converge fast across the system. |
| excludes |
| Same shape as includes; excludes win on conflict. |
created_at | For audit and cache versioning/epochs. |
created_at | Ordering, feeds, retention. |
updated_at | For edits and invalidation signals. |
That means:
We will discuss about this in the Deep Dive 2
3. Policy Uniformity Across Surfaces
Using rule-based configs ensures the same privacy logic applies:
One audience_spec_id + version → evaluated the same way everywhere
We will discuss about this in the FR3
